OH - MV - Clamp - PG - PINCE-xPG

PINCE-xPG Synchronous Beat In order to derive a secondary conductor or to shut a conductor's loop so that it can be fitted on an insulator, clamps are made to join two parallel conductors. The upper body and lower body are the two components that make up these connectors. They can accept the conductors thanks to their two parallel grooves. The two bodies of aluminum clamps are composed of a very strong aluminum alloy. Electrolytic copper with exceptional strength is used to make copper clamps. The two bodies of bimetallic clamps are composed of a high-strength aluminum alloy, and one groove is created with laminated Contacting plate that is hot-forged to create a molecular connection in order to tighten a copper conductor. In order to prevent rust between the clamp and conductor.

CATALOG INFORMATION

Share it:

Specifications

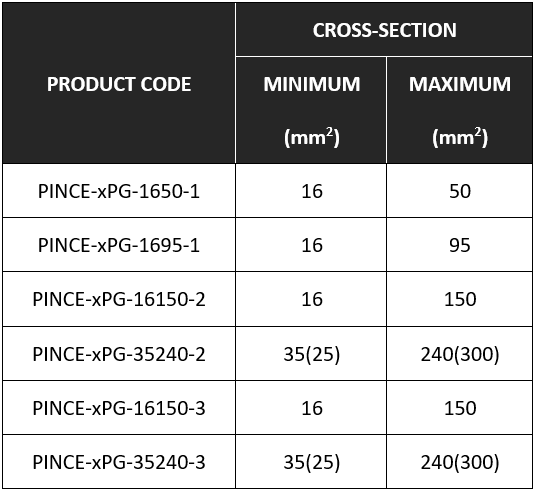

CONDUCTOR CROSS-SECTION’S APPLICATION

*Note: The products can be improved or modified based on specified requests of different market.

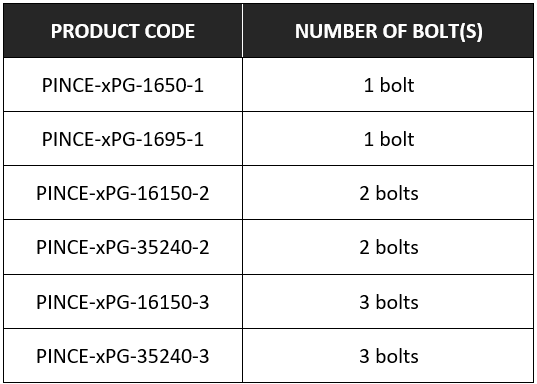

CONDUCTOR CROSS-SECTION’S APPLICATION

*Note: The products can be improved or modified based on specified requests of different market.

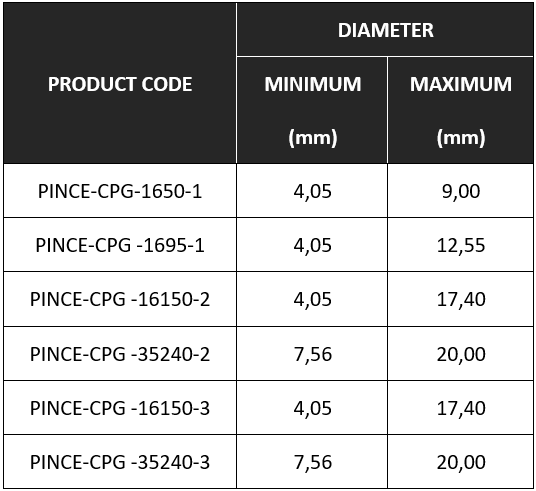

CLAMP TYPE FOR COPPER CONDUCTOR

*Note: Letter “C” shall be replaced for letter “x” for Copper Parallel Groove Clamp. The products can be improved or modified based on specified requests of different market.

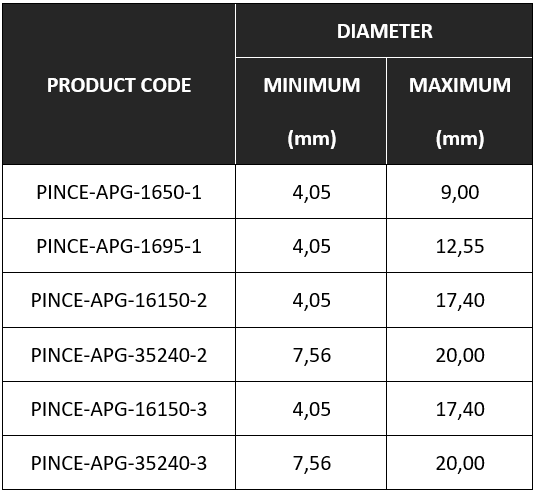

CLAMP TYPE FOR ALUMINUM CONDUCTOR

*Note: Letter “A” shall be replaced for letter “x” for Aluminum Parallel Groove Clamp. The products can be improved or modified based on specified requests of different market.

CLAMP TYPE FOR COPPER-ALUMINUM CONDUCTOR

*Note: Letter “CA” shall be replaced for letter “x” for Copper-Aluminum Parallel Groove Clamp. The products can be improved or modified based on specified requests of different market.

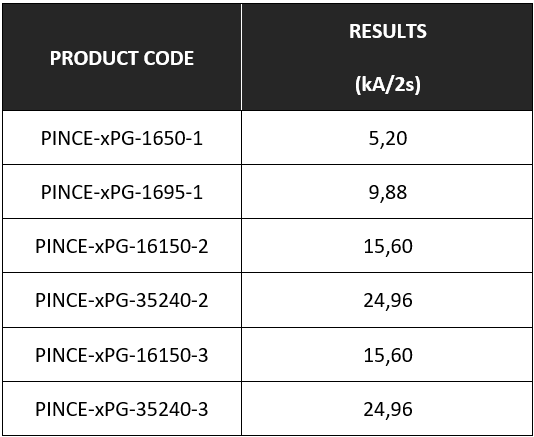

SHORT CIRCUIT CAPACITY TO COPPER CONDUCTOR

*Note: The products can be improved or modified based on specified requests of different market

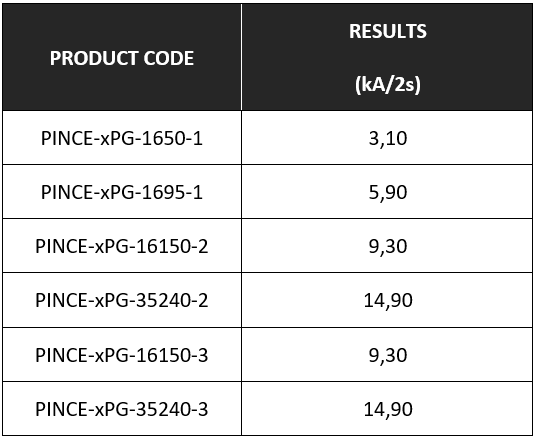

SHORT CIRCUIT CAPACITY TO ALUMINUM CONDUCTOR

*Note: The products can be improved or modified based on specified requests of different market. .

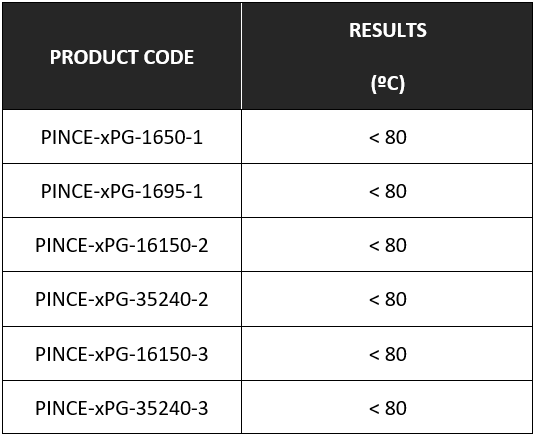

NORMAL WORKING TEMPERATURE

*Note: The products can be improved or modified based on specified requests of different market.

SAFETY CONSIDERATION

This product is intended for use by trained craftspeople only. This product SHOULD NOT BE USED by anyone who is not familiar with and trained in the use of it.
When working in the area of energized lines with this product, EXTRA CARE should be taken to prevent accidental electrical contact.
For PROPER PERFORMANCE and PERSONAL SAFETY be sure to select the proper size EMAAR product before application.
EMAAR products are precision devices. To insure proper performance, they should be stored in cartons under cover and handled carefully.
