ABC Metal-Hook Suspension Clamp PINCE-WORMx are intended for use on straight runs and for line deviation angles up to 60 ̊, cross-section from 25-150 mm2. These suspension clamps are suitable for coastal environments and are manufactured from high strength corrosion resistant aluminum-alloy, incorporating neoprene bushes and stainless-steel hardware. An optional failure link is built into the fitting. The clamps are designed as a one-piece format, eliminating the problems of dropping components whilst installing the clamp. The PINCE-WORMx suspension clamp greatly assists linesmen by supporting the cable in the open position, and allowing fast installation by simply closing the clamp and tightening the fastener. The product meet requirements of EN 50483 series and AS 3766.

CATALOG INFORMATION

Share it:

Specifications

MATERIALS

Hooking tongue: Galvanized steel.

Bushing: UV and weather resistant elastomer

Bolts: Galvanized steel

CONDUCTOR CROSS-SECTION’S APPLICATION

PRODUCT CODE	CROSS-SECTION (mm²)
PINCE-WORM2-16	16
PINCE-WORM2-25	25
PINCE-WORM2-35	35
PINCE-WORM2-50	50
PINCE-WORM2-70	70
PINCE-WORM2-95	95
PINCE-WORM2-120	120
PINCE-WORM2-150	150
PINCE-WORM3-16	16
PINCE-WORM3-25	25
PINCE-WORM3-35	35
PINCE-WORM3-50	50
PINCE-WORM3-70	70
PINCE-WORM3-95	95
PINCE-WORM3-120	120
PINCE-WORM3-150	150
PINCE-WORM4-16	16
PINCE-WORM4-25	25
PINCE-WORM4-35	35
PINCE-WORM4-50	50
PINCE-WORM4-70	70
PINCE-WORM4-95	95
PINCE-WORM4-120	120
PINCE-WORM4-150	150

MAX. OUTER DIAMETER OF ARIEL BUNDLED CABLE

PRODUCT CODE	MAX. DIAMETER (mm)
PINCE-WORM2-16	> 16,37
PINCE-WORM2-25	> 19,03
PINCE-WORM2-35	> 21,34
PINCE-WORM2-50	> 24,60
PINCE-WORM2-70	> 28,11
PINCE-WORM2-95	> 32,91
PINCE-WORM2-120	> 36,17
PINCE-WORM2-150	> 39,09
PINCE-WORM3-16	> 17,83
PINCE-WORM3-25	> 20,72
PINCE-WORM3-35	> 23,24
PINCE-WORM3-50	> 26,79
PINCE-WORM3-70	> 30,61
PINCE-WORM3-95	> 35,84
PINCE-WORM3-120	> 39,39
PINCE-WORM3-150	> 42,56
PINCE-WORM4-16	> 19,10
PINCE-WORM4-25	> 22,20
PINCE-WORM4-35	> 24,90
PINCE-WORM4-50	> 28,70
PINCE-WORM4-70	> 32,80
PINCE-WORM4-95	> 38,40
PINCE-WORM4-120	> 42,20
PINCE-WORM4-150	> 45,60

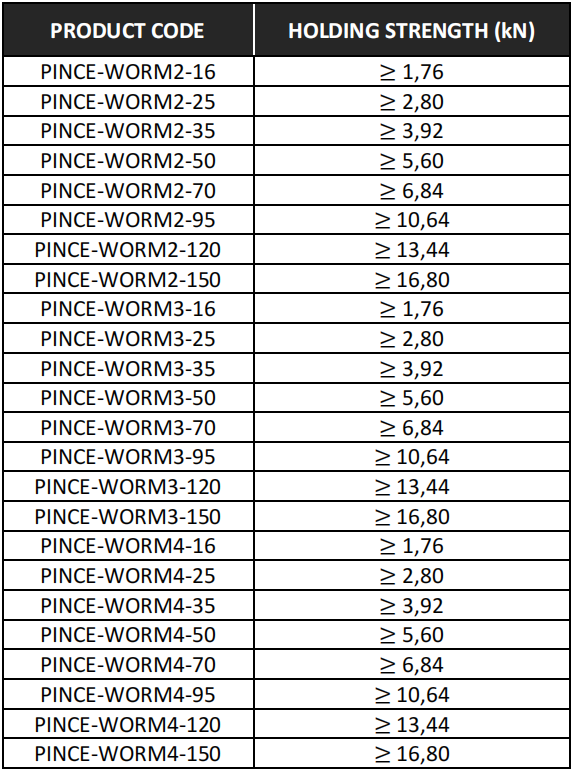

HOLDING STRENGTH

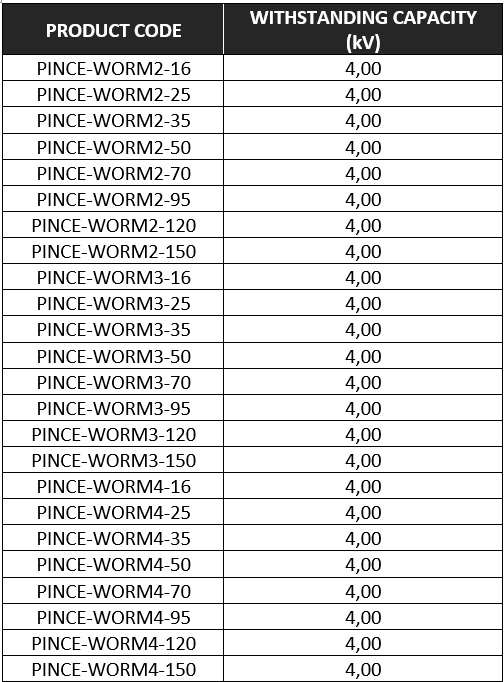

DIELECTRIC STRENGTH

SAFETY CONSIDERATION

This product is intended for use by trained craftspeople only. This product SHOULD NOT BE USED by anyone who is not familiar with and trained in the use of it.
When working in the area of energized lines with this product, EXTRA CARE should be taken to prevent accidental electrical contact.
For PROPER PERFORMANCE and PERSONAL SAFETY be sure to select the proper size EMAAR product before application.
EMAAR products are precision devices. To insure proper performance, they should be stored in cartons under cover and handled carefully.
