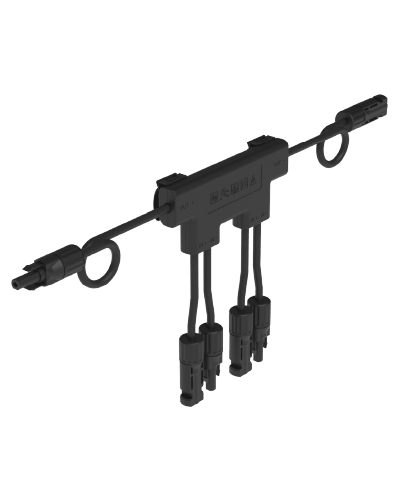

Hoymiles RSD-2C Series
As part of Hoymiles rapid shutdown solution for PV system, HRSD-2C can be connected with two modules. It meets NEC 2017, NEC 2020, UL 1741 and SunSpec Rapid Shutdown requirements, guaranteeing PV system safety.
When installed with and receiving a "permission to operate" signal from Hoymiles Transmitter, HRSD starts proper operation of PV system. In case of emergency, PV system would enter module-level rapid shutdown mode by simply disconnecting the AC power of Transmitter or using an external initiator.
Specifications
Features
- Module-level rapid shutdown
Meets NEC2017&NEC2020 690.12 requirements and SunSpec RSD requirements
- Cost-effective
Two inputs
- PLC communication
Realize rapid shutdown with Transmitter
- Easy Installation
Plug & play, no configuration required
- High Efficiency
Lower power consumption and wider operating voltage range
- Low Noise
Much lower than arc noise. No risk of triggering AFCI

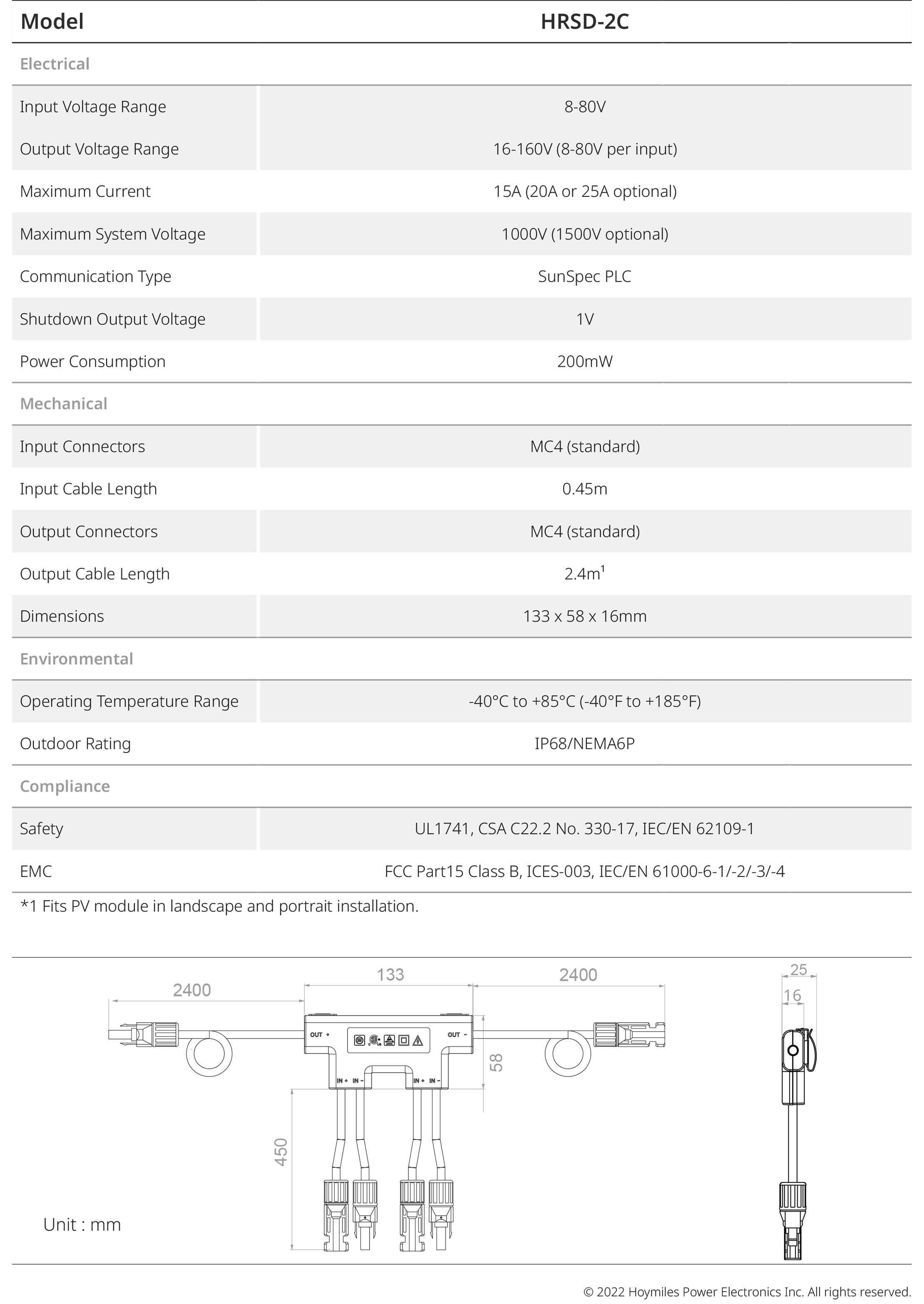

Technical Specifications
