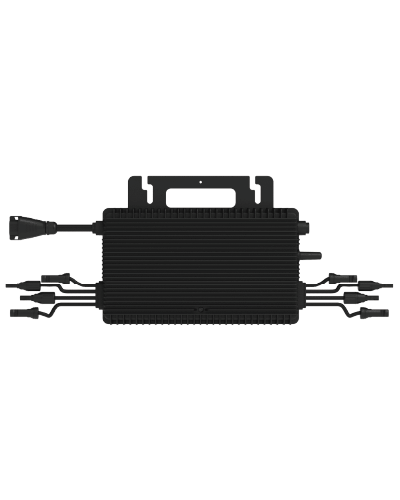

4-in-1 | HMS-(1600-2000)DW-4T (Wi-Fi integrated) Series
Hoymiles new generation microinverter HMS-2000DW series is designed to accommodate high-powered PV modules, with maximum output power up to 2000 VA and maximum DC input current up to 16 A.
The innovative 4-input design enables faster installation and lower cost, and makes the HMS-2000DW series a very costeffective choice.
The integrated Wi-Fi module enables more convenient communications and simpler configurations between the microinverter and smart platform S-Miles Cloud.
Specifications
Features
- Built-in Wi-Fi module enables quicker and easier installation and commissioning
- The industrial-grade Wi-Fi module brings higher microinverter reliability
- With output power up to 2000 VA, compatible with 182 mm/210 mm PV module
- 4-in-1 design enables faster installation and lower cost
- Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer
- IP67 (NEMA 6) protection degree, adapt to outdoor use

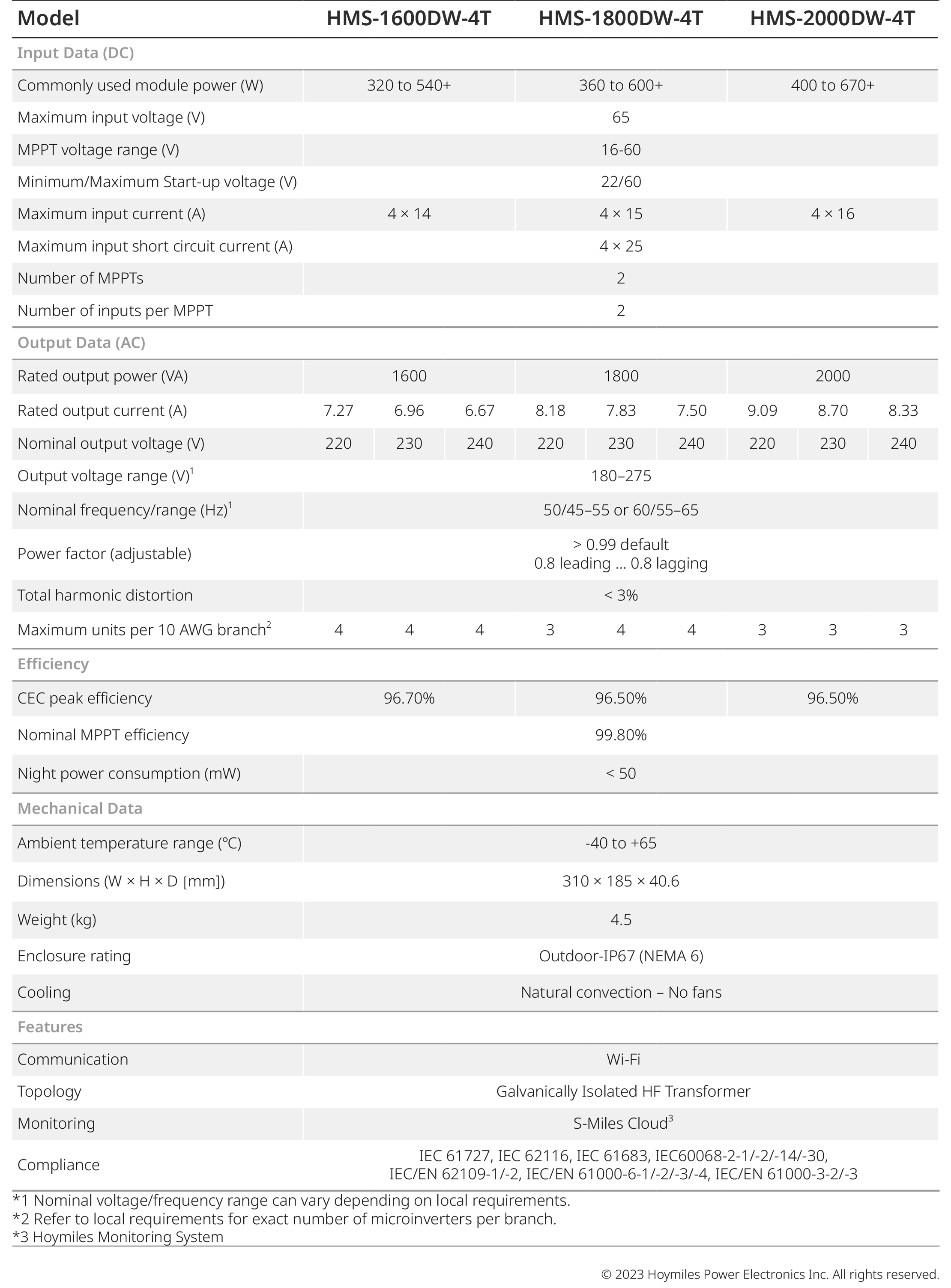

Technical Specifications
