PINCE-FLUTE
PINCE-FLUTE - 1
PINCE-FLUTE - 1

PINCE-FLUTE

Sleeve joint for ACSR conductors – PINCE-FLUTE is also named mid span joint, it is reliable, easy-to-install splicing method is perfect for overhead transmission and distribution lines. The joint compression for ACSR conductor not only satisfies the basic tension requirements, but also deals with the problems of conductor elongation and conductor misalignment during the high-temperature cycle.

Share it:

Specifications

MATERIAL

Joint of outer: Aluminum/ Aluminum-alloy

Joint of inner: hot dip galvanized steel

FEATURES

Prolong service life: The repair sleeve can repair worn or damaged bearing seats or shafts, prolonging the service life of machinery and equipment.

Save time and cost: Using the repair sleeve can avoid the process of replacing the entire bearing seat or shaft, saving replacement time and cost.

Convenient and fast: the installation and replacement process of the repair kit is relatively simple, without a lot of professional tools, just follow the instructions when installing.

Enhanced performance: The repair sleeve can improve the sealing and wear resistance of the bearing seat or shaft, thereby improving the overall performance of the machine equipment.

APPLICATIONS

The function of aluminum steel core conduit is to directly connect two aluminum steel core cables with the same cross-section of the overhead power line.

CONDUCTOR CROSS-SECTION’S APPLICATION

PRODUCT CODE

CROSS-SECTION (mm2)

PINCE-FLUTE-50/8

50/8

PINCE-FLUTE-70/11

70/11

PINCE-FLUTE-95/16

95/16

PINCE-FLUTE-120/19

120/19

PINCE-FLUTE-150/19

150/19

PINCE-FLUTE-185/24

185/24

PINCE-FLUTE-240/32

240/32

*Note: The products can be improved or modified based on specified requests of different market.

CONDUCTOR DIAMETER’S APPLICATION

PRODUCT CODE

MAX. DIAMETER (mm)

PINCE-FLUTE-50/8

9,6/3,2

PINCE-FLUTE-70/11

11,4/3,8

PINCE-FLUTE-95/16

13,5/4,5

PINCE-FLUTE-120/19

15,2/5,6

PINCE-FLUTE-150/19

16,8/5,6

PINCE-FLUTE-185/24

18,9/6,3

PINCE-FLUTE-240/32

21,6/7,2

*Note: The products can be improved or modified based on specified requests of different market.

MINIMUM BREAKING STRENGTH OF CONDUCTOR (MBL)

CONDUCTOR (mm2)

FORCE (kN)

50/8

17,112

70/11

24,130

95/16

33,369

120/19

41,521

150/19

46,307

185/24

58,075

240/32

75,050

*Note: The products can be improved or modified based on specified requests of different market.

DIAMETER OF ALUMINUM SLEEVE

PRODUCT CODE

MAX. DIAMETER (mm)

PINCE-FLUTE-50/8

10,00 ÷ 11,10

PINCE-FLUTE-70/11

12,00 ÷ 12,90

PINCE-FLUTE-95/16

14,10 ÷ 15,00

PINCE-FLUTE-120/19

16,20 ÷ 17,40

PINCE-FLUTE-150/19

17,80 ÷ 19,00

PINCE-FLUTE-185/24

19,90 ÷ 21,10

PINCE-FLUTE-240/32

22,60 ÷ 23,80

*Note: The products can be improved or modified based on specified requests of different market.

BREAKING STRENGTH AFTER COMPRESSION

PRODUCT CODE

BREAKING STRENGTH (kN)

PINCE-FLUTE-50/8

≥ 90 % MBL

PINCE-FLUTE-70/11

≥ 90 % MBL

PINCE-FLUTE-95/16

≥ 90 % MBL

PINCE-FLUTE-120/19

≥ 90 % MBL

PINCE-FLUTE-150/19

≥ 90 % MBL

PINCE-FLUTE-185/24

≥ 90 % MBL

PINCE-FLUTE-240/32

≥ 90 % MBL

*Note: The products can be improved or modified based on specified requests of different market.

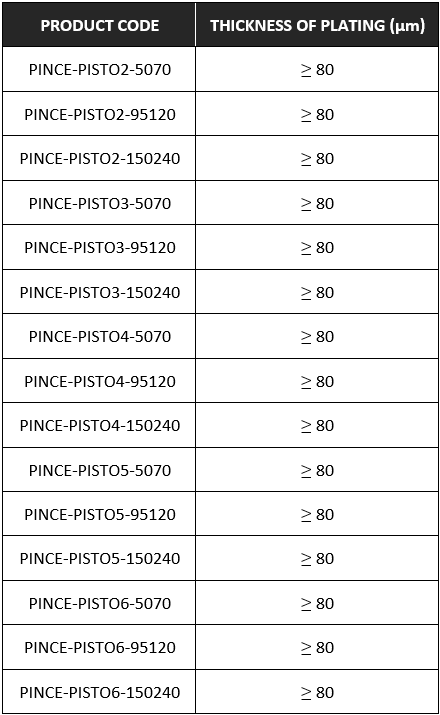

HOT-GALVANIZED THIKCNESS OF STEEL SLEEVE

*Note: The products can be improved or modified based on specified requests of different market. The letter “x” shall be replaced to “2” for “2 U-bolt type”, to “3” for “3 U-bolt type”, to “4” for “4 U-bolt type”, to “5” for “5 U-bolt type”, to “6” for “6 U-bolt type”.

SAFETY CONSIDERATION

1. This product is intended for use by trained craftspeople only. This product SHOULD NOT BE USED by anyone who is not familiar with and trained in the use of it.

2. When working in the area of energized lines with this product, EXTRA CARE should be taken to prevent accidental electrical contact.

3. For PROPER PERFORMANCE and PERSONAL SAFETY be sure to select the proper size EMAAR product before application.

4. EMAAR products are precision devices. To insure proper performance, they should be stored in cartons under cover and handled carefully.
