3 phase | HIT-(5-20)L-G3 Series
3 phase | HIT-(5-20)L-G3 Series - 1
3 phase | HIT-(5-20)L-G3 Series - 1

3 phase | HIT-(5-20)L-G3 Series

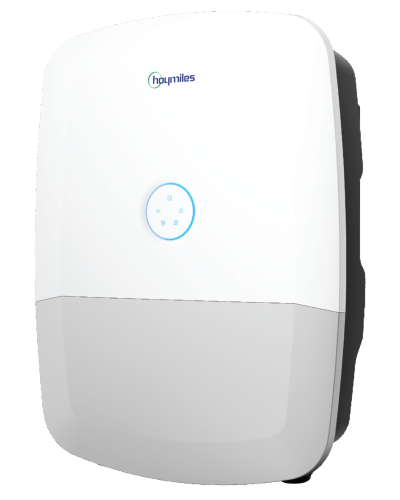

The HIT-(5-20) L-G3 series is a high-performance three-phase hybrid inverter with excellent reliability, including power classes ranging from 5 kW to 20 kW.

The intelligent EMS function supports self-consumption mode, economy mode, backup mode, peak shaving mode, and time of use mode for multi-scenario applications.

Monitoring management through S-Miles Cloud allows users to remotely diagnose and track the individual system performance over time, offering superior energy production.

Share it:

Specifications

Features

  • 4 MPPTs with 20 A input; DC/AC oversizing up to 200%
  • 100% unbalanced output; max. output of each phase up to 50% rated power
  • Support multiple intelligent working modes including Peak Shaving and 8×24h Time of Use
  • Integrated AI energy management with generator, heat pump and smart load
  • Max. 10 inverters in parallel for on-grid and off-grid system extension
  • Ultralight for easy installation and space-saving; unique built-in meter solution with up to 50 A bypass

Technical Specifications

 Hybrid Inverter 3 phase HIT-(5-20)L-G3 Series
